Description
Doric Capital for 9-1/4" top of column sold as pack of 4 capitals
Made from ArchPolymer Rot Water & Insect resistant interior-exterior primed white
Timing: custom allow 2 weeks production plus freight time
For different quantity - click link below for PDF request form

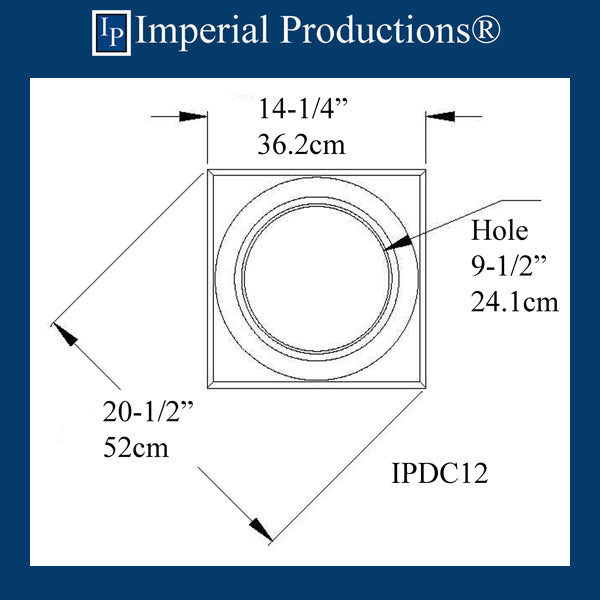

Measurements
Inside Hole 9-1/2" (24.1cm)
Height 4-3/8" (11.1cm)
Square Abacus 14-1/4" x 14-1/4" (36.2cm)

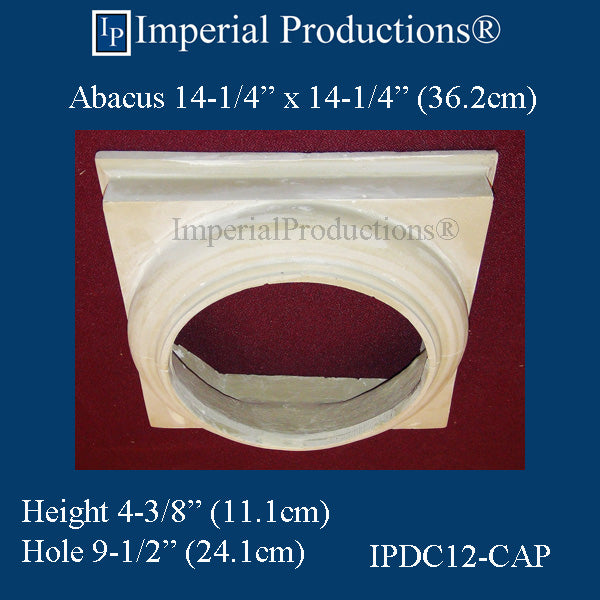

IPDC12-CAP is a Doric Capital molded as 1 piece (Stepped Abacus & Round Echinus). The hole fits around a 9-1/4" round top of column (approximate 9-1/2" hole size). The column's load from the lintel resides on the substrate. The capital does not hold load. It is available in ArchPolymerTM a lite weight composite material rot water and insect resistant for interior and exterior. Optional materials include ArchPolymerTM Class A Fire Rated, GRG-NeoPlasterTM for interior fire rated applications, GFRC-ZeamentTM a Portland cement composite Class A fire rated for high traffic commercial interior and exterior applications. Customize with optional factory cuts. Specify Split for Pilaster up against a wall, Split for Post wrap, Wedged for outside corners, Section cut for Wall Wraps - specify the size, Quartered for inside corners, or Engaged for portion cuts for Pilaster applications. This capital can be ordered FactoryPainted or components can be RealMetalCoated.
